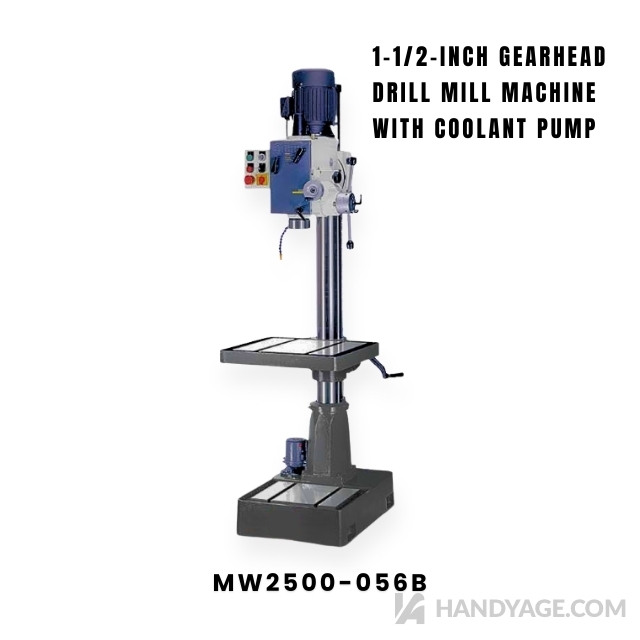

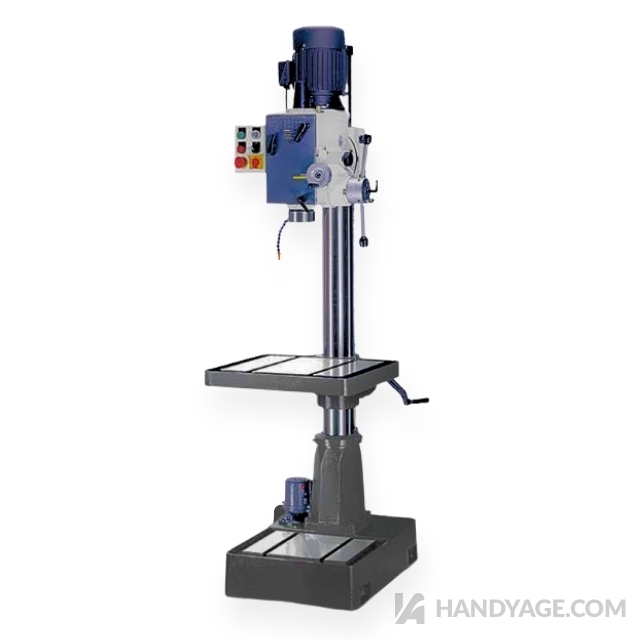

1-1/2-inch Gearhead Drill Mill Machine with Coolant Pump

PRODUCT CODE : MW2500-056

• FEATURES

  • Gearhead floor type drill mill machine
  • Tilting Head Left 90° Right 30°
  • Spindle Power Down Feed 0.12-0.18-025mm / rev
  • Equipped with coolant pump

• DESCRIPTION

  • Gearhead drill presses provides more precise and consistent speed settings for better control of drilling operations

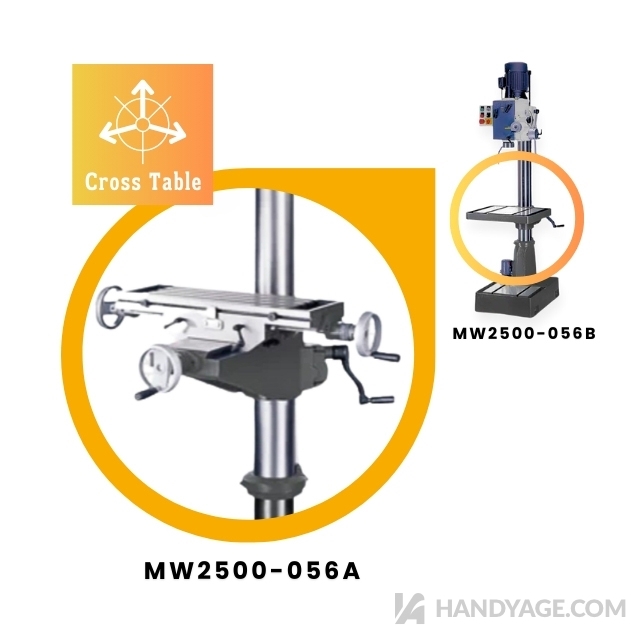

  • With Cross-Slide to achieve precise X-Y axis movement, allowing users to accurately position the workpiece under the drill bit or ( Square Table for ifferent models )
  • Quickly change the spindle through quick selection of the gear shift levers, and achieve wide range control with the fine hand wheel
  • High-speed spindle / Quill, Ideal for milling and faster drilling setups, making it suitable for a variety of tasks

• SPEC
  View Product Spec

  Working Capacity
  in mild steel
  Drilling	40mm(1 1/2”)
  Face Mill	100mm(4”)
  End Mill	25mm(1”)
  Tapping (Option)	22mm(7/8”)
  in light Alloy
  Drilling	50mm(2”)



  Item	Nnit	MW2500-056A	MW2500-056B
  Main Motor	HP	1(3-phase)/ 1.5(1-phase)
  Coolant Pump	HP	1/8
  Spindle 1-Speed Motor (standard)	rpm	60HZ (6speeds) 65/ 130/ 220/ 480/ 925/ 1550 50HZ(6 speeds) 55/ 105/ 175/ 390/ 755/ 1260
  Spindle 2-Speed Motor(optional)	rpm	60HZ(12speeds) 65/ 130/ 220/ 480/ 925/ 1550 130/ 260/ 440/ 960/ 1850/ 3100 50HZ(12speeds) 55/ 105/ 175/ 390/ 755/ 1260 110/ 210/ 350/ 780/ 1510/ 2520
  Taper	mm	MT4
  Spindle Sleeve Stroke	mm	107
  Spindle center to column Surface	mm	260
  X Travel	mm	380	-
  Y Travel	mm	180	-
  Column Diameter	mm	Ø115
  Spindle Nose to Table	mm	416	530
  Quill Diameter	mm	75
  T Slot Size	mm	14x2x24	16x2x26
  Table Size	mm	585x190 (Cross Table)	555x495 (Square Table)
  Base Size	mm	386x300	386x300
  Packing Dimensions	Mm (LxWxH)	915x762x2083	915x762x2083
  Machine Weight	NW/GW	310/340kgs 685/750lbs	310/340kgs 685/750lbs
